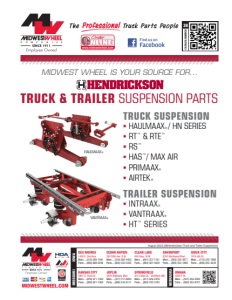

38Hendrickson Truck and Trailer Suspension

2 TRUCK SUSPENSION PROGRAM HAULMAAX® / HN SERIES HN SERIES HAULMAAX Parts & Kits for Haulmaax & HN Series Suspensions Wear Plate Auxiliary/ Progressive Spring & Shims Tie Bar Bolster Spring Equalizing Beam Rebound Strap Saddle Assembly Transverse Rod Torque Rod Bushing Torque Rod APPLICATION: VOCATIONAL Progressive Spring Auxiliary Spring Bolster Spring Description P/N Qty. Bolster Springs Haulmaax Tie-Bar Bolster Spring Kit (Includes 2 springs & 1 wear plate) HTK64179-048 2 Complete Haulmaax Tie-Bar Bolster Spring Kit (Includes 2 springs, 1 wear plate & 1 Auxiliary Spring) HTK60961-712 2 HN Series Bolster Spring (2 springs) HTK60879-000L 2 Auxiliary/Progressive Springs Progressive Load Spring Service Kit (One Side) HTK60961-745 2 Auxiliary Load Spring Service Kit (One Side) HTK64179-004 2 Bar Pin End Bushing Kit Shim Type (1 wheel end) HTK34013-088L 4 Rotating (1 wheel end) HTK34013-188L 4 Equalizing Beam Rotatable bar pin end bushing (HTK34013-188L) for quick & easy install HMX460 54" Beam Assy w/ Shock Bracket HTK080225-001 2 HMX460 54" Beam Assy w/o Shock Bracket HTK080226-001 2 HN462 54" Beam Assy HTK080227-002 2 HN402 52" Beam Assy HTK080228-008 2 Saddle Assembly HMX400 HTK64642-000 2 HMX460 HTK64643-000 2 Shock Absorbers (Not Pictured) 16.5" Haulmaax HTK60680-005L 4 17.5"/18.5" Haulmaax HTK60680-006 4 HN Series Shock HTK60680-003 4 Torque Rods 2 Piece Torque Rod Kit HTK60218-000 2 Taper Bushing HTK64697-000H 2 Parts Rebound Strap Service Kit, Includes Rebound Strap, Rebound Clip, (4) Flange Bolts, (4) Flange Nuts, (2) Hex Bolt, and (2) Locknuts HTK64179-028 2 Rebound Strap HTK57878-003 2 Wear Plate HTK64890-000 4 Qty. per suspension End Bushing HN Series P/N HTK60879-000L Haulmaax P/N HTK64179-048 Haulmaax P/N HTK60961-712 Bolster Spring Kit Complete Bolster Spring Kit
