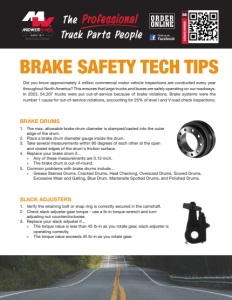

CATALOG NUMBER 08 Did you know approximately 4 million commercial motor vehicle inspections are conducted every year throughout North America? This ensures that large trucks and buses are safely operating on our roadways. In 2023, 54,207 trucks were put out-of-service because of brake violations. Brake systems were the number 1 cause for out-of-service violations, accounting for 25% of level I and V road check inspections. BRAKE DRUMS 1. The max. allowable brake drum diameter is stamped/casted into the outer edge of the drum. 2. Place a brake drum diameter gauge inside the drum. 3. Take several measurements within 90 degrees of each other at the open and closed edges of the drum's friction surface. 4. Replace your brake drum if... » Any of these measurements are 0.12-inch. » The brake drum is out-of-round. 5. Common problems with brake drums include... » Grease Stained Drums, Cracked Drums, Heat Checking, Oversized Drums, Scored Drums, Excessive Wear and Galling, Blue Drum, Martensite Spotted Drums, and Polished Drums. SLACK ADJUSTERS 1. Verify the retaining bolt or snap ring is correctly secured in the camshaft. 2. Check slack adjuster gear torque - use a lb-in torque wrench and turn adjusting nut counterclockwise. 3. Replace your slack adjuster if... » The torque value is less than 45 lb-in as you rotate gear, slack adjuster is operating correctly. » The torque value exceeds 45 lb-in as you rotate gear.
MIDWESTWHEEL.COM MEMBER KANSAS CITY 5801 E. Front St. Main ....(816) 471-1552 Parts....(800) 821-7402 JOPLIN 2424 Stephens Blvd. Main ....(417) 717-6022 Parts....(866) 318-9111 SPRINGFIELD 812 Lillian Dr. ∙ Strafford, MO Main ....(417) 429-2476 Parts....(800) 785-3705 SIOUX CITY 1819 4th St. Main ....(712) 252-7969 Parts....(800) 943-3534 CEDAR RAPIDS 200 50th Ave. S.W. Main ....(319) 365-4453 Parts....(800) 332-5435 DES MOINES 1436 E. Ovid Ave. Main ....(515) 265-1491 Parts....(800) 888-0248 CLEAR LAKE 840 Hwy. 18 W. Main ....(641) 357-7101 Parts....(800) 397-5630 DAVENPORT 8502 Northwest Blvd. Main ....(563) 322-2671 Parts....(800) 553-1886 OMAHA 9770 S 142nd Street, Suite 1 Main ....(531) 239-3050 Parts....(800) 322-8757 NEBRASKA IOWA MISSOURI May 23, 2024 (08Brake Safety Tech Tips) SHOES/LININGS 1. Measure lining wear. Linings must have greater than 1/4 thickness at the center of the brake lining. Inspect for cracks, separation from the brake shoe table, and loose rivets. BRAKE CHAMBER 1. Verify push rod is exiting the chamber at a 90 degree angle and it returns completely after each brake application. 2. Inspect the chamber bracket for cracks and damage. 3. Verify the caging bolt, nut, and washer are installed, and the caging bolt is cover is secure. CAMSHAFTS 1. Check the camshafts for cracks, wear, or corrosion. Check the cam head bearing journals and splines. Replace worn or damaged camshafts. Install a new camshaft. 2. The bushing wears in one direction; it is important to rotate the camshaft in all directions when checking for radical free play. 3. Do not replace bushings and seals if... » The radical free play is less than 0.03" (0.76mm). 4. Replace bushings and seals if... » The radical free play is more than 0.03" (0.76mm).
